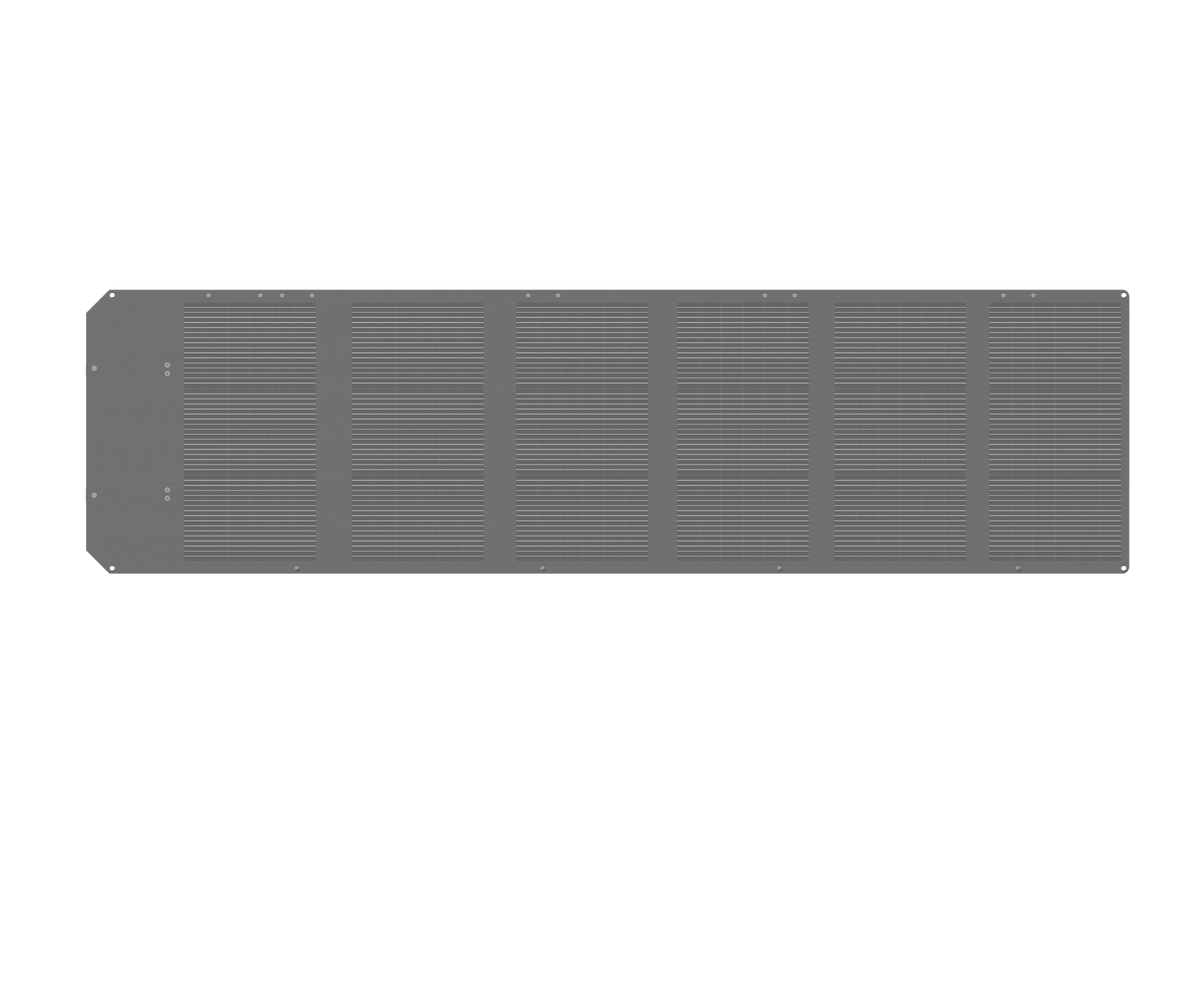

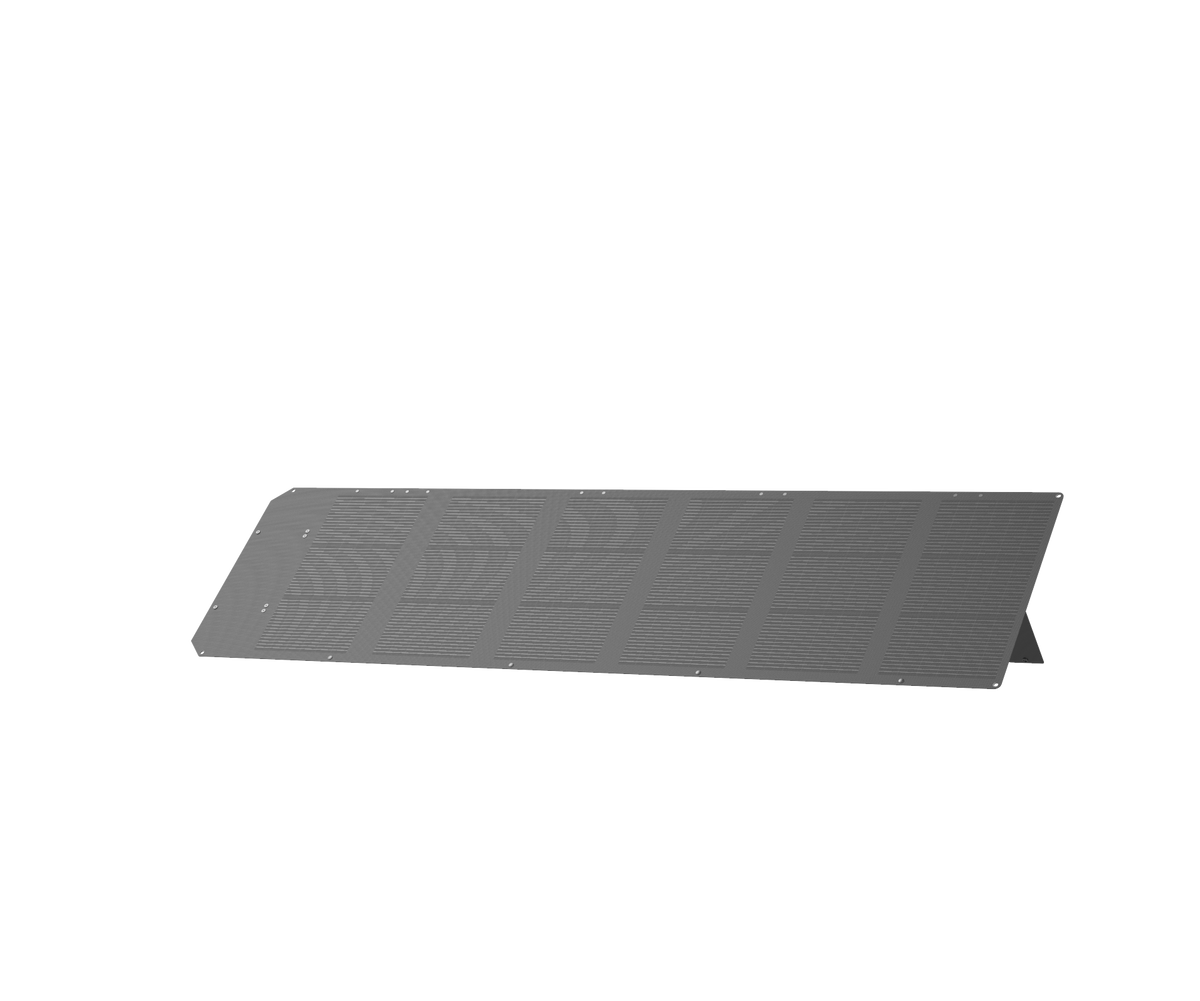

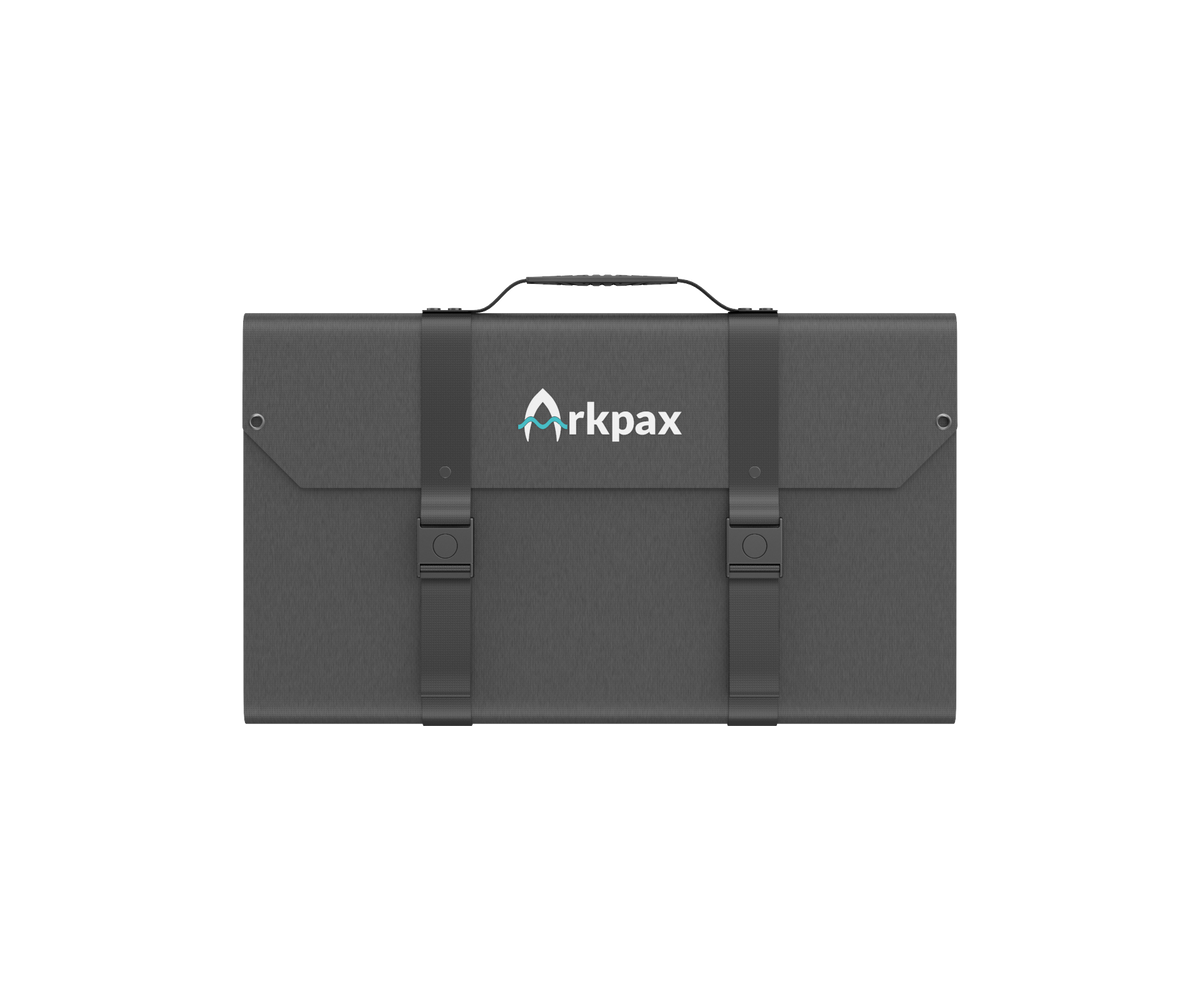

Arkpax Foldable Solar Panel - 200W
Featuring high-efficiency monocrystalline silicon, IP67 water-resistant, and a rugged 6-fold design. The ultimate solar solution for large power stations.
200W Ultra-High Power Output
Engineered for high-capacity energy storage. Delivers a massive 200W of clean energy to keep your professional power stations (like Ark Pro) topped up during extended off-grid stays.
Premium Monocrystalline Technology
Utilizes elite monocrystalline silicon cells with 25% cell efficiency, achieving a 22.8% overall conversion rate for maximum sunlight-to-power efficiency.
ETFE One-Piece Lamination
Crafted with ETFE one-piece lamination technology. Only 3mm thick, UV-resistant, and built to withstand harsh outdoor environments.
Specifications
Product Name
Arkpax SP-C200
Watt
200W
Folding Number
6
Item Weight
15.7 lb
Cell Type
Monocrystalline Silicon
Output
XT60/DC5521/DC8020
Rated Voltage
21.6V DC
Rated Current
9.26A
Conversion Efficiency
22.8%
Dimensions (folded)
23.9×13.5×3.2in
60.8×34.3×8.1cm
Dimensions (Unfolded)
23.9×87.8×1.0in
60.8×223.0×2.5cm
Operating Temperature Range
-20℃ ~ 65℃ / -4°F~149°F
Water-resistant
IP67
Cable Length
300.0cm / 118.1in
FAQs
The box contains one Arkpax Foldable Solar Panel - 200W and one User Manual.
Harnessing solar panels for power generation on boats offers numerous benefits. By capturing sunlight and converting it into electrical energy, solar panels provide a reliable and sustainable power source, especially during daylight hours. This approach aligns with eco-conscious practices, reduces reliance on traditional fuel sources, and promotes a cleaner marine environment.
The water-resistant rating of Arkpax Solar Panels is IP67, indicating a high level of protection against water and dust ingress. These panels are specifically designed to withstand exposure to marine environments, ensuring durability and reliability in challenging conditions at sea.
Our solar cells are equipped with high-performance monocrystalline technology, delivering an exceptional 22.8% conversion rate.
This ensures consistent and efficient charging capabilities, even when facing adverse weather conditions or low light environments.
Nevertheless, the generated power output of a marine solar panel is also influenced by variables such as sunlight intensity, panel positioning, and shading effects.
Store the solar panel in a cool, dry location, avoiding direct sunlight exposure.
